K25 5AX-2C

Inquiry Prev
Product Description

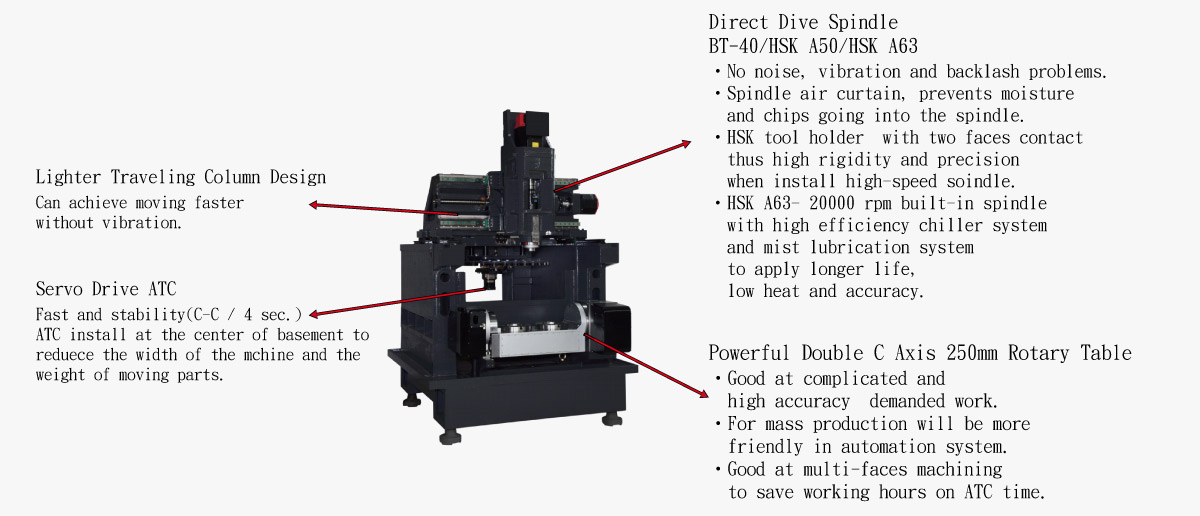

  • Ｈigh cutting rigidity with Gantry structure design.
  • Compact design lessfloor occupation.
  • Cutting area isolateion to ensure the transmission system life longer and easier to install linear scale.
  • High efficiency servo drive ATC system, C-C(T1-T2) only 4 sec., with high stable performance.
  • ATC install at the center of basement to reduce the width of othe machine to save the walking steps to loading & unloading workpiece.
  • Y axis linear guide with chromate finish and anti-rusty treatment, with two pieces wipers to pevent chips to affect accuracy.
  • Could have single C axis 350mm, two heads C axis 250mm or 105mm with four C axis; Integrated radial & axial bearing design to enhance accuracy.
Product Feature


Standard accessories
  • Spindle air blow device
  • Electrical cabinet
  • Dual-color LED alarm light
  • TFT LCD monitor
  • Spindle oil/air mist lubrication system (Built-in spindle -standard,for others - optional)
  • Chip flushing system
  • Coolant system
  • Chiller (Spindle speed 12000/15000/2000rpm-standard)
  • Hydraulic unit(5AX-standard, for others-option)
  • Chip coolecting tray and coolant tank
  • Work light
  • Automatice lubrication system
  • Tool kits and tools
Optional accessories
  • High speed spindle upgrade (12K/15k/20K build-in)
  • Spindle motor power upgrade
  • Coolant through spindle
  • SK-40,CAT-40 Magazine & Spindle
  • NBT40,BBT40 Spindle
  • Three axis linear scale
  • A/C axis scale
  • Chip conveyor: Chain/Scraper/Filter type
  • Automatic door
  • Automatic tool length measurement with breaking detection
  • Air conditioner for electonic cabinet
  • Transformer; Voltage regulator
  • Coolant gun / Air gun
  • 4th/5th axis rotary table
  • Work table lower 100mm
Product Specification
Machine Specifications
Model 　 K25 5AX-2C
  TRAVEL
X Axis mm 700
Y Axis mm 450
Z Axis mm 420
A AXIS mm -30~+120
C AXIS mm 360
Table to Spindle Nose mm 150~570
　 TABLE
Table Size mm C axis Φ250x2
Max.Load  kgs 75x2(Horizontal)/40x2(vertical)
T-Slot mm 12H7x4x90∘
Max. work area mm 255X300L
  SPINDLE
Spindle taper 　 BT# 40 HSK A50 HSK A63
Pull studs 　 MAS-403-45 - -
Speed rpm 10000
Transmission mm Direct Drive
　 MAGAZINE
Magazine capacity 　 22 30 22
Dirve type 　 Servo Drive
Taper mm 7/24 NO:30   　　
Max Tool Weight 　 4 3 4
Max Tool Diameter mm 100 80 100
Max Tool Length mm 300
Atc Time(C-C/T1-T2) sec. 4
　 FEED RATE
Rapid Speed G00) M/min 48/48/48
Cutting feedrate (G01) mm/min 10000
  MOTOR
X-Axis kw 3.0(Mitsubishi) / 3.0(Fanuc)
Y-Axis kw 3.0(Mitsubishi) / 3.0(Fanuc)
Z-Axis kw 3.0(Mitsubishi) / 3.0(Fanuc)
Spindle kw 7.5/5.5
  DIMENSIONS　
W x D x H  cm 1720x3200x2950
Net Weight kgs 6720
NC Specifications
　 Mitsubishi　 Fanuc　
　 M80-VB M80-VA M830S 0i-MF(P3) 0i-MF(P1)
Max. Controlled Axes 9 11 16 6 9
Max. Simultaneous Axes 4 4 4 4 4
Program Storage Length 512K 512K 512K 512K 512K
Macro Variables Common 700 700 700 700 700
Tool Offset Sets 400 400 400 400 400
Simplified programming function ○ ○
Display 8.4" TFT LCD 10.4" TFT LCD 8.4" TFT LCD
Display language selection  ○ ○
Memory Card Front-Loading ○ ○
Ethernet ○ ○
High Speed And Accuracy Machining Code SSS G05.1 Q1
PROCESSING RANGE

 DIMENSIONS
　 A B C
K25 5AX-2C 1720 3200 2950
* All specifications, dimensions and design characteristics are subject to change without prior notice.
