TS-45 Series

Inquiry Prev Next
Product Description
Perfect Structure Design!!
High Speed without Vibration!!
  • All structural parts are manufactured from Meehanite cast iron with thorough stress relief. This features outstanding of structure without deformation.
  • Three axes slideways are equipped with HIWIN roller type linear guide ways.
  • Traveling column, oversized base and light moving parts permit high speed travel without vibration.
  • Stable automatic pallet change. Fully traveling column on 3 axes. One-piece constructed oversized base provides extra large span between slideways, Ensuring extremely smooth movement of Y-axis. X-axis acceleration / deceleration is over 1G without vibration.
  • The increased height of moving parts shortens the distance from the spindle nose to blocks on 3 axes linear ways. This results in optimal rigidity during cutting.
Product Feature

High Precision, Fast Pallet Change

  • The high precision pallet change is achieved through a 3-piece coupling positioning mechanism
  • The pallet change is fully motor driven with cam indexing. Pallet change is quickly completed in only 3.2 (TS-45) sec.
  • Each work area can be equipped with one set of air system(hydraulic system optional) for auto fixture.

Efficient Magazine

  • Strong and accurate clamping, provides stable and reliable tool change.
  • BT#30 ARMLESS type magazine(14/21T). T-T 1.5 sec(14T)

Direct-drive spindle

  • The spindle is directly coupled to the motor,　no noise, backlash or vibration.
  • The maximum spindle speed 24000 rpm (OP).
  • It can satisfy High-precision parts of machining requirements.
  • High rigidity mechanism, High-speed rotation and low vibration.

Standard accessories

  • Spindle air blow device.
  • Flushing system.
  • Independent PL lamp for loading and cutting area.
  • Tool coolant system and high flow chip flushing system.
  • Pressure detected automatic lubrication system and high efficiency lubrication oil fitter.
  • One-piece dual layer insulated electric cabinet.
  • Independent air connection for each work table.
  • Dual-color LED alarm light.
  • Tool kits and tools.
  • Table with twin work area.

Optional accessories

  • High speed spindle upgrade (12K/15k/24K)
  • Spindle motor power upgrade
  • Coolant through spindle
  • HSK63 Magazine & Spindle
  • Three axis linear scale
  • Chip conveyor: Chain/Scraper/Filter type
  • Automatic tool length measurement with breaking detection
  • Air conditioner for electonic cabinet
  • Transformer; Voltage regulator
  • Coolant gun / Air gun
  • 4th axis rotary table(Single or Dual)
Product Specification
Machine Specifications
Model   TS-45
  TRAVEL
X-Travel mm 450
Y-Travel mm 320
Z-Travel mm 330

Table to Spindle Nose

 mm 180~510
  TABLE
Table Area mm 500x325x2PCS
Max. Load kgs 200x2PCS
T-Slot mm 14x100x3
  SPINDLE
Spindle Speed rpm 10000

Max. Tapping Speed

 rpm 5000
Spindle Taper mm 7/244 NO:30
Transmission mm Direct Drive
  TRAVERSE
Rapid Traverse (G00) M/min 48/48/60

Machining Speed (G01)

 mm/min 10000
  MAGAZINE
Tool Shank . BT# 30
ATC . Armless
Magazine Capacity . 14
Max. Tool Length mm 200
Max. Tool Diameter kgs 100
Max. Tool Weight sec 2.5
Time (T to T) sec 1.5
Time (C to C) sec 2.1
  MOTOR
X-Axis kw 2.2(Mitsubishi) / 1.8(Fanuc)
Y-Axis kw 1.5(Mitsubishi) / 1.2(Fanuc)
Z-Axis kw 2.2(Mitsubishi) / 3.0(Fanuc)
Spindle kw 3.7/2.2
  MACHINE SPECIFICATIONS
W x D x H cm 1755x3027x2523
Net Weight kgs 4000
NC Specifications
　 Mitsubishi　 Fanuc　
　 M80-VB M80-VA M830S 0i-MF(P3) 0i-MF(P1)
Max. Controlled Axes 9 11 16 6 9
Max. Simultaneous Axes 4 4 4 4 4
Program Storage Length 512K 512K 512K 512K 512K
Macro Variables Common 700 700 700 700 700
Tool Offset Sets 400 400 400 400 400
Simplified programming function ○ ○
Display 8.4" TFT LCD 10.4" TFT LCD 8.4" TFT LCD
Display language selection  ○ ○
Memory Card Front-Loading ○ ○
Ethernet ○ ○
High Speed And Accuracy Machining Code SSS G05.1 Q1
Working Table Size

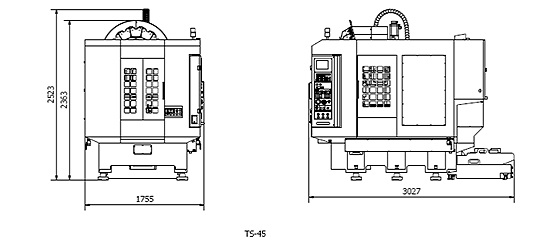

Dimensions
