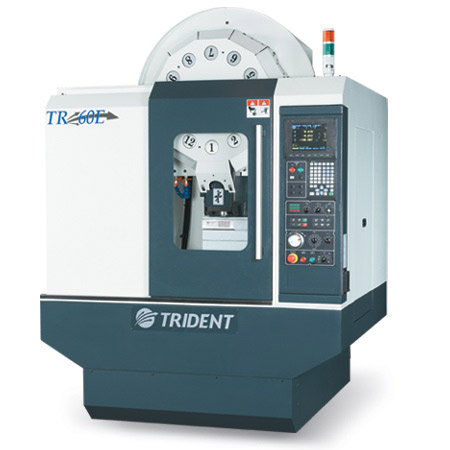

TR-603 Series

Inquiry Prev Next
Product Description
  • Standard spindle speed
    BT#30 60~10,000 min-1
  • Optional spindle speed
    BT#30 12,000 ; 15,000 ; 24,000 min-1
  • Rigid tapping 4,000 min-1
  • Spindle nose taper BT-30
  • 3 axes rapid traverse
    BT#30 X, Y:48 M/min, Z:60 M/min
  • Fully enclosed heat isolated electric cabinet
  • High speed ATC system T-T:1.4 sec
  • Directly coupled spindle drive system
Product Feature
Standard Machine Features
  • Spindle air blow device
  • Work light (PL light)
  • Tool coolant system
  • Leveling bolts and pads
  • Screw-type chip removing device
  • Automatic lubrication system
  • Tool kit and tools
  • Dual-color LED alarm light
  • TFT LCD monitor
Optional Accessories
  • 12,000 RPM spindle
  • 15,000 RPM spindle (except TR-60E)
  • 24,000 RPM spindle (TR-603, TR-603A only)
  • Increased motor power
  • Extra low inertia spindle motor
  • High pressure coolant through spindle (20bar): (except TR-60E)
  • Automatic tool length measurement with breaking detection
  • Automatic door
  • Transformer; regulator
  • Workpiece air blow system
  • 4th axis
  • 5th axis
Product Specification
Machine Specifications
Model TR-603 Series
603 603A
  TRAVEL
X-Travel mm 600
Y-Travel mm 400
Z-Travel mm 350 430

Table to Spindle Nose

 mm 150~500 150~580
  TABLE
Table Size mm 700x420
Max. Table kgs 250
T-Slot mm 14x100x4
  SPINDLE
Speed rpm 10000

Max. Tapping Speed

 rpm 4000
Taper mm 7/24 NO:30
Transmission mm Direct drive
  FEED RATE
Rapid Speed G00) M/min 48/48/60

Cutting feedrate (G01)

 mm/min 10000
  MAGAZINE
Tool Shank   BT# 30
Change Method 　 Armless Arm
Capacity 　 12 20+1
Max. Length mm 200
Max. Dia. kgs 100 63
Max. Tool Weight sec 2.5 3
Time (T to T) sec 1.4 1.5
Time (C to C) sec 1.8 1.9
  MOTOR
X-Axis kw 1.5(Mitsubishi) / 1.2(Fanuc)
Y-Axis kw 1.5(Mitsubishi) / 1.2(Fanuc)
Z-Axis kw 3.0(Mitsubishi) / 3.0(Fanuc)
Spindle kw 3.7/2.2
  DIMENSIONS
W x D x H cm 165x252x260 165x252x280
Net Weight kgs 3250 3500
NC Specifications
　 Mitsubishi　 Fanuc　
　 M80-VB M80-VA M830S 0i-MF(P3) 0i-MF(P1)
Max. Controlled Axes 9 11 16 6 9
Max. Simultaneous Axes 4 4 4 4 4
Program Storage Length 512K 512K 512K 512K 512K
Macro Variables Common 700 700 700 700 700
Tool Offset Sets 400 400 400 400 400
Simplified programming function ○ ○
Display 8.4" TFT LCD 10.4" TFT LCD 8.4" TFT LCD
Display language selection  ○ ○
Memory Card Front-Loading ○ ○
Ethernet ○ ○
High Speed And Accuracy Machining Code SSS G05.1 Q1

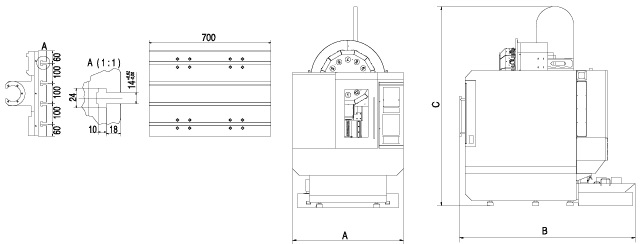

Dimensions
T-solt Dimension

Machine Dimension
  A B C
TR-603 1650 2520 2600
TR-603A 1650 2520 2800
* All specifications, dimensions and design characteristics are subject to change without prior notice.
